380V 50HZ pet strap making machine For Packing / plastic banding machine

pp pet Strap Band Making Machine , PET PP Strapping Band Extrusion Line For Packing

Quick detail:

PP Strapping Band Extrusion Machine
PP Strap Band Making Line
Strap Making Machine
PET Tape Extrusion Production Line
PP Strapping Band Making Machine
PP Strap Making Machine
4 Exits PP Strap band extrusion line machine

Description:

Processing material: 100% recycled PET flakes or virgin PET (I.V ≥0.75)

Product width: 9-25mm

Strap thickness: 0.5-1.2mm

Quantity of extruded straps band: 4strands/ 2 strands/1 strands

Max output: 200kg/hr

Max Liner speed: 120m/min ×2

Power supply: 380V/3P/50Hz

Installed power: 280KW (production power: about 130KW )

Operators: 2-3

Overall dimension: 36m×6m×4.5m (36 meters to be overall dimensions including winders.)

pp strap manufacturing machine is composed of forced extruder (main machine), cooling tank,1^st stretching unit,wind heat stretching oven,2^ND stretching unit,character printer, embossing machine, light-heat shaping oven, water tank for shaping, 3^rd stretching unit and light weight curler.The standard installation shall be in line and in order, and the technological process of the machine as shown in following figure.

Technological parameter:

Application :

PET strap, also known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, Special twin screw extrusion technology and single screw extrusion technology,can be choose as per customer needs.

Competitive Advantage:

1. Offering high quality products with competirive prices.

2. Working with experienced forwarder for safe shipping.

3. Trust-worthy after-sale service.

4. 100% Satisfy your needs with professional staff.

Strap Making Machine

Automatic Strapping Machine

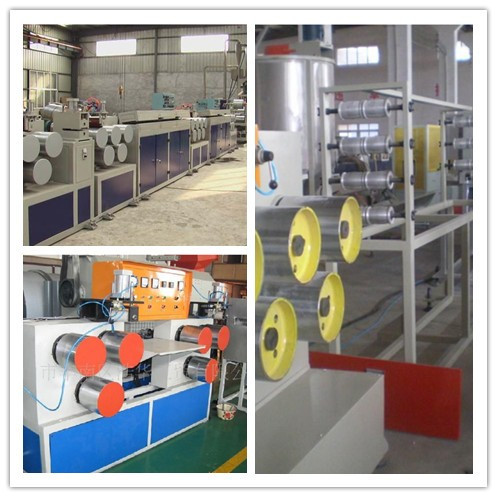

380V 50HZ pet strap making machine For Packing / plastic banding machine Images
